The new evolution in the Chrome family
The Chrome Plus has gained (on bikes with a Can Bus) two new 100Hz analog channels, thus increasing to 10 the available 100Hz channels that sums to the RPM, front and rear speed, GPS speed and acceleration, leaning angle and 10 10Hz customized channels depending on bike model. Now also the GPS altitude channel is available. Thanks to the power of the Chrome Plus it is now possible to implement the DDS (Danas Dynamic Settings) that enables to change some parameters like map or Traction control level corner by corner on every track! (now available on ZX10R 2016 and Yamaha R1>2015).
Pairing DANAS software with data from lambda sensor with stoichiometric functions one can create his own map directly on track
The Chrome Plus dashboard is the new evolution in the Chrome family. In this new version all the features have been enhanced, starting from its famous shape and its true color display 800×400, all the inside electronic has been completely reengineered with a new 1GHz processor and a 1GB RAM and so much as 16GB internal memory.
Now you can have together the classic monochrome backgrounds, and new backgrounds such as carbon look and analog tachometer.

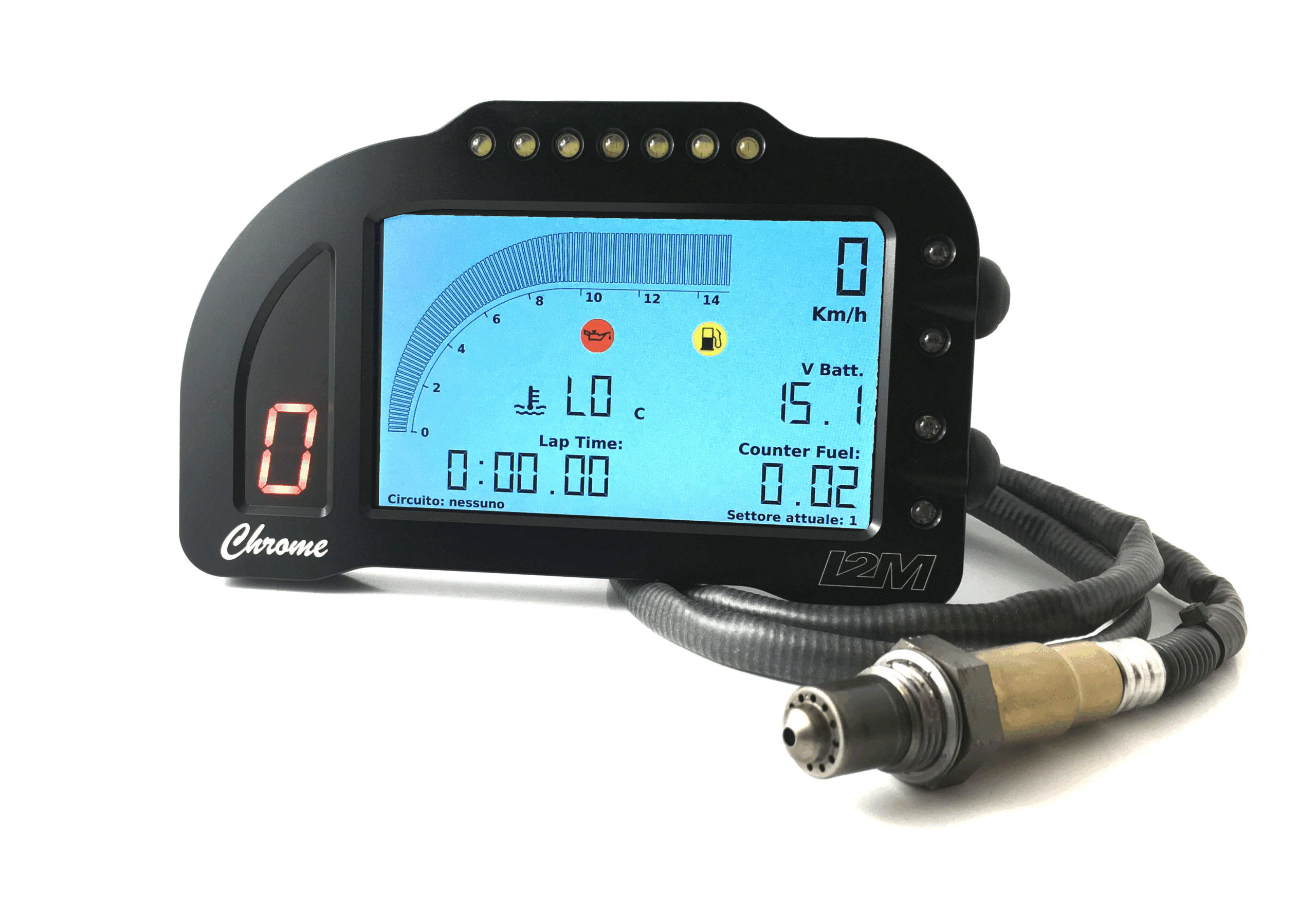

It gained new lateral RGB alarms and all the integrated electronics for the Bosch LSU 4.9 lambda sensor. Pairing its data with Danas stoichiometric functions it is possible to create your own fuel map while on track.

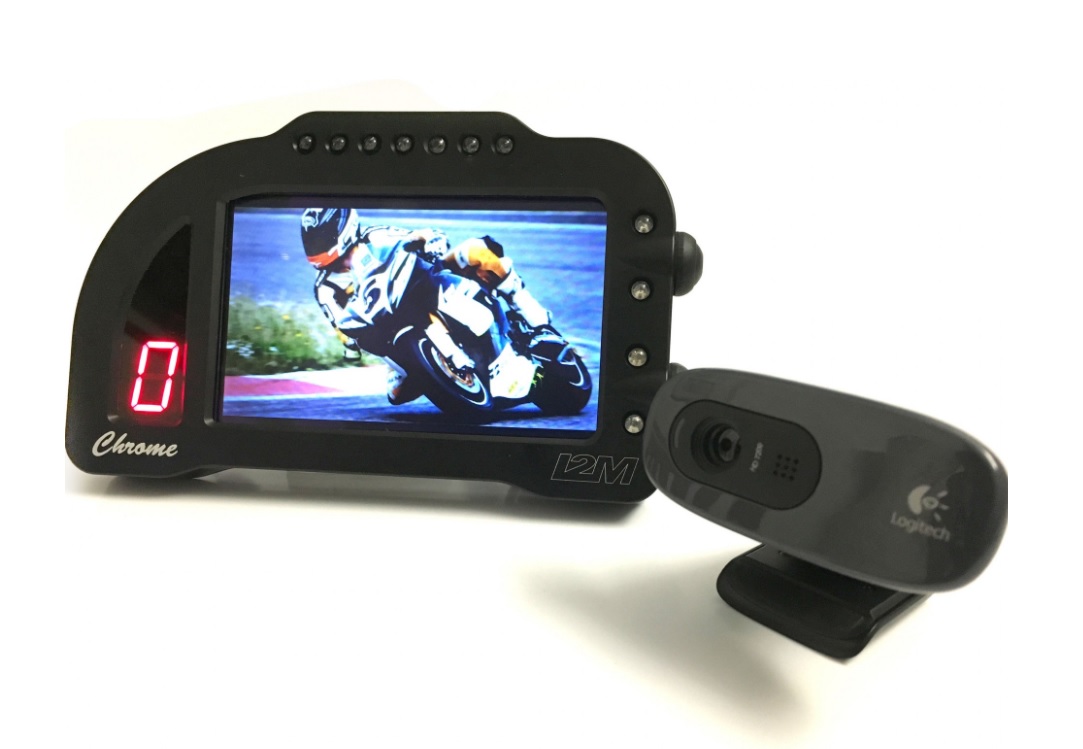

Chrome Plus has anew video input where you can plug a Logitech cam C270 [1280×720 25fps resolution] , while the audio recording is provided by an internal mic , thus protected from the wind , so to have an optimal bike engine sound rendering.A CNC aluminum case is available to substitute the original Logitech C270 plastic case. This makes the webcam water resistant and has a gopro supports compatible connection. It also has a screw binder connector to plug it directly to Chrome.
If the 720p resolution is not enough, the new Chrome Plus can drive an external GoPro cam via WiFi, it can turn it on and off and start recording in sync with data acquisition. Thus you can create a synchronized video with acquired data.

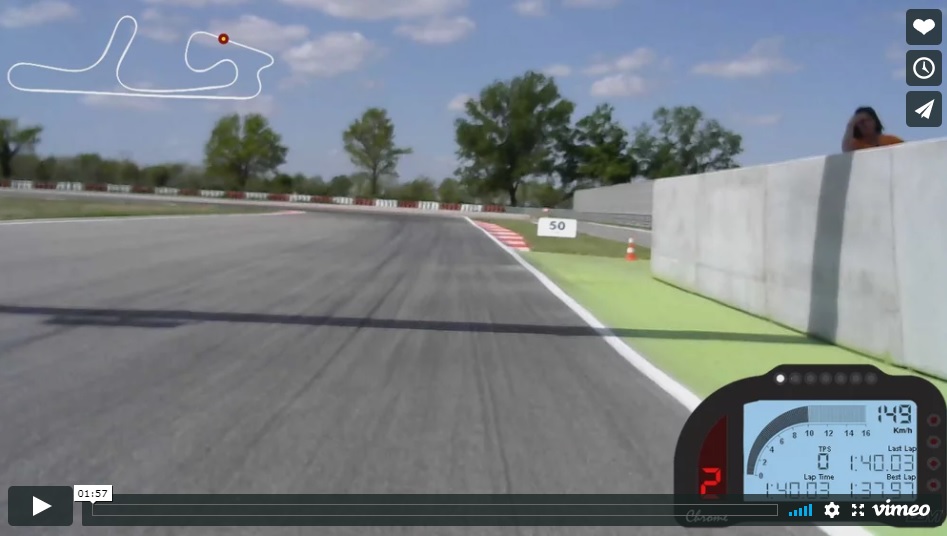

Thanks to Chrome Plus it is now easy to create video with data footage and use them to analyze performances by Danas new video features
Chrome can automatically connect to an external network, when in the box. One can download data easily and rapidly directly from a PC.

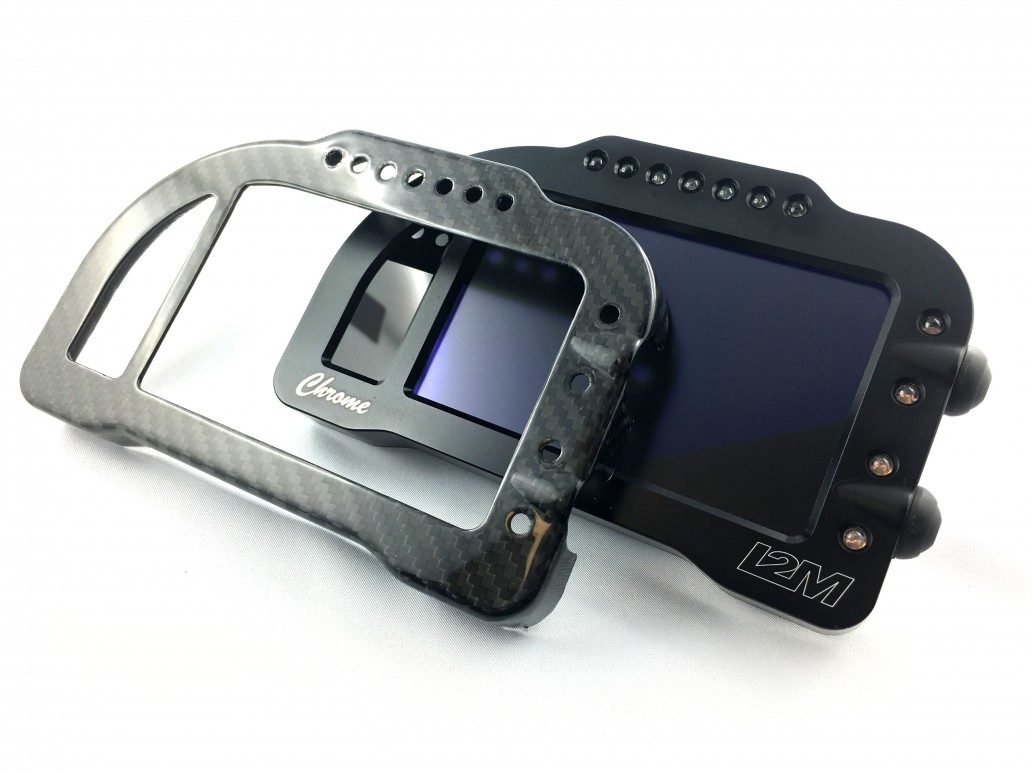

A carbon cover is available both for Chrome Lite and for Chrome Plus. It protects the aluminum case from sractches and dirt in case of a crash. The cover is easily mount by the rubber inside.
Plug & Play for the Ducati Panigale 899 / 959 / 1199 / 1299
